51103 Thrust Ball Bearing,Made In China

2018-08-17
service content:





Product Packing & Delivery

Packing Detials:Industrial packing, Single box+carton, or as customer's request


Delivery Detail:Be Allowed By Sea,By Air,By Rallway Or Express.

Product Quick Details

Single direction thrust ball bearing,usually axial load only.made in china,high performance and low price


Bearing Number: 51103
Interchanged No.: 8103
Brand: SEMRI
Size (mm): 17 x 30 x 9
Material: chrome steel or stainless steel or carbon steel
Precision: P0 P6 P5 P4
Clearence: black or natural
Cage: steel or brass
Weight (Kg): 0.028
Country of Origin: CHINA
Certification: ISO9001

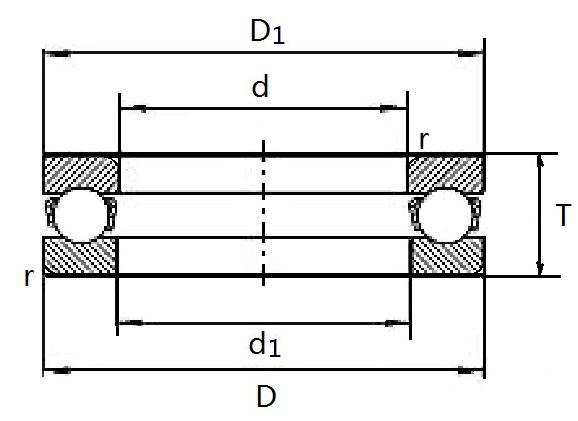

New number Old number Main Dimension Load rating / KN maximum speed Weight
d (mm) D (mm) T (mm) Dynamic
C
Static
C0
Grease
r/min
Oil
r/min
approximate
KG
51100 8100 10 24 9 10 14 6500 10000 0.02
51101 8101 12 26 9 10.3 15.4 6500 10000 0.022
51102 8102 15 28 9 10.5 16.8 6100 9400 0.024
51103 8103 17 30 9 10.8 18.2 6100 9400 0.028
51120 8120 100 135 25 85 268 1600 2500 0.99
51122 8122 110 145 25 87.1 288 1600 2400 1.08
51124 8124 120 155 25 89 308 1500 2300 1.16
51126 8126 130 170 30 104 352 130 2000 1.87
51128 8128 140 180 31 107 377 1200 1900 2.2
51130 8130 150 190 31 109 402 1200 1900 2.15
