Double row angular contact ball bearing

Bearing No.		Dimensions (mm)			Basic Load Rating (N)		Weight (kg)
Bearing No.		Dimensions (mm)			Basic Load Rating (N)

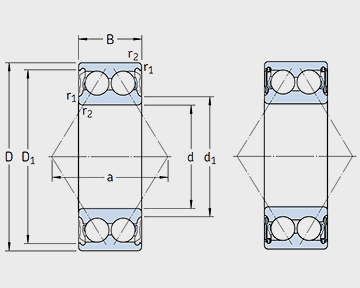

ISO	GOST	d	D	B	Dyn. C	Stat. C0
3200	3056200	10	30	14	7410	4300	0.051
3201	3056201	12	32	15.9	10100	5600	0.058
3202	3056202	15	35	15.9	11200	6800	0.066
3203	3056203	17	40	17.5	14000	8650	0.096
3204	3056204	20	47	20.6	18600	12000	0.160
3205	3056205	25	52	20.6	20300	14000	0.180
3206	3056206	30	62	23.8	28100	20000	0.290
3207	3056207	35	72	27	37100	27500	0.440
3208	3056208	40	80	30.2	44900	33500	0.590
3209	3056209	45	85	30.2	47500	38000	0.630
3210	3056210	50	90	30.2	47500	39000	0.660
3211	3056211	55	100	33.3	57200	67000	1.050
3212	3056212	60	110	36.5	72100	85000	1.400
3213	3056213	65	120	38.1	78100	95000	1.750
3214	3056214	70	125	39.7	95000	83000	1.850
3215	3056215	75	130	41.3	95000	84000	2.100
3216	3056216	80	140	44.4	109000	102000	2.650
3217	3056217	85	150	49.2	129000	117000	3.400
3218	3056218	90	160	52.4	142000	142000	4.150
3219	3056219	95	170	55.6	147000	142000	5.000
3220	3056220	100	180	60.3	187000	175000	5.500
3222	3056222	110	200	69.8	190000	180000	8.800
3302	3056302	15	42	19	15100	9150	0.130
3303	3056303	17	47	22.2	21200	12500	0.180
3304	3056304	20	52	22.2	22100	14300	0.220
3305	3056305	25	62	25.4	31200	20800	0.350
3306	3056306	30	72	30.2	41000	28500	0.530
3307	3056307	35	80	34.9	48800	34000	0.730
3308	3056308	40	90	36.5	56200	43000	0.950
3309	3056309	45	100	39.7	72100	73500	1.400
3310	3056310	50	110	44.4	88000	96500	1.950
3311	3056311	55	120	49.2	95200	108000	2.550
3312	3056312	60	130	54	112000	127000	3.250
3313	3056313	65	140	58.7	160000	126000	4.000
3314	3056314	70	150	63.5	161000	130000	4.900
3315	3056315	75	160	68.3	187000	160000	5.700
3316	3056316	80	170	68.3	198000	179000	6.950
3317	3056317	85	180	73	194000	185000	8.300
3318	3056318	90	190	73	220000	220000	9.250
3319	3056319	95	200	77.8	238000	315000	11.00
