FAG NN3024-D-K-TVP-SP-XL Cylindrical Roller Bearings
Main Dimensions & Performance Data
d :120 mm   Bore diameter
D :180 mm   Outside diameter
B :46 mm   Width
Cr :275,000 N  Basic dynamic load rating, radial
C0r :390,000 N  Basic static load rating, radial
Cur :60,000 N  Fatigue load limit, radial
nG Grease   :5,700  1/min  Limiting speed for grease lubrication
nG Oil :6,700   1/min     Limiting speed for oil lubrication
≈m     :3.kg      Weight
Mounting dimensions
da : 127mm  diameter shaft shoulder
h12      diameter shaft shoulder tolerance
Da: 158.3mm   diameter of housing shoulder
H12      diameter of housing shoulder tolerance
Etk 1 nom :152.4 mm  Injection pitch diameter min
ra1 max    : 2 mm     Maximum recess radius

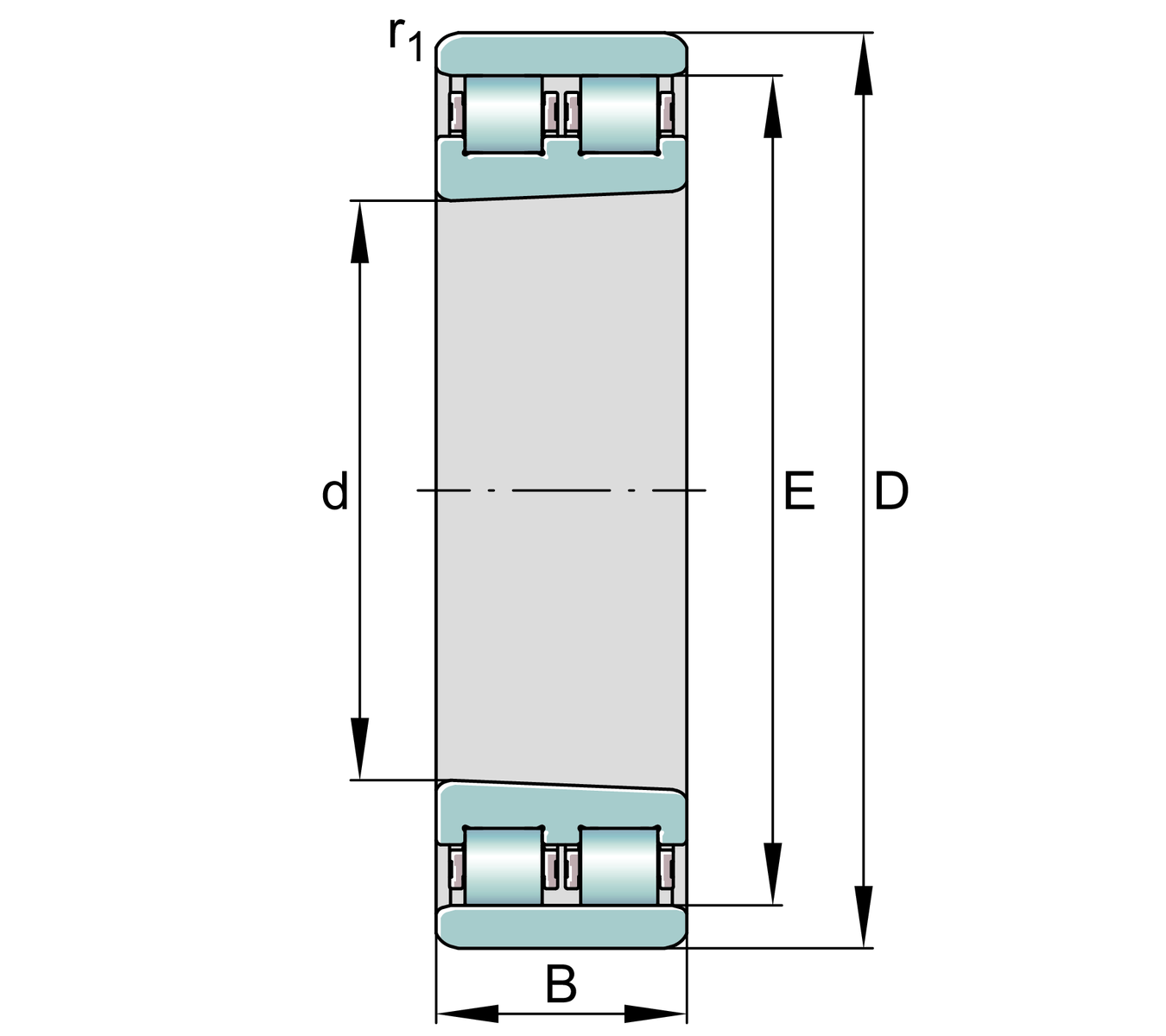

Dimensions
r1 min :2mm   Minimum chamfer dimension
E     :155 mm Raceway diameter outer ring
s     :2.9 mm  Axial displacement
Temperature range
Tmin  -30 °C   Operating temperature min.
Tmax 120 °C   Operating temperature max.
