High Performance Angular Contact Ball Bearing 7205
Quick Details:
Structure:angular contact
Type:ball

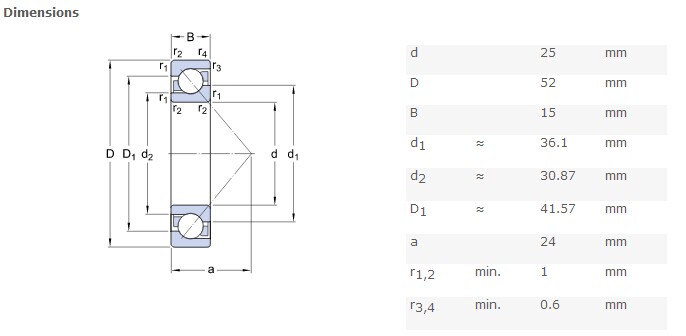

Inner diameter:25mm
Outer diameter:52mm
Width:15mm
Brand: SKF FAG INA NSK KOYO NTN HRB ZWZ…
Number of Row:single
Place of origin:Sweden
Seals type: open,sealed
Name
Angular contact ball bearing
Quality standard
ISO9001:2000 standard
Delivery date
Normally ready goods and stock
Payment terms
T/T, Paypal,Western Union, Moneygram
Application
automotive, rolling mill, mining, metallurgical,
plastic machinery,
etc.
Package
a. According to customer's requirements.
b. Original TIMKEN NSK NTN KOYO IKO good quality packaging.
c. Laser mark on the bearing.
d. Bearing wrapped by vacuum packaging.
The raceways of angular contact ball bearing in the inner and outer rings can have relative displacement on the horizontal axis. Therefore, this design can make it withstand combined loads, namely, supporting radial and axial loads simultaneously. The axial load capacity of angular contact ball bearing improves with the increasing contact angle. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis. The retainer is made of brass, synthetic resin of others subject to individual bearing's features and application conditions
