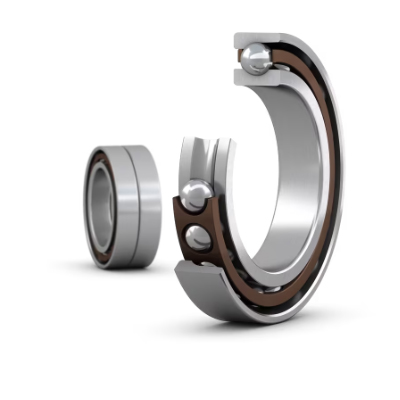

High load capacity single row angular contact ball bearing71800 ACD/P4DBB
2024-01-19
service content：
71800 ACD/P4 roller beari ese ball bea
Universal matched bearings
none

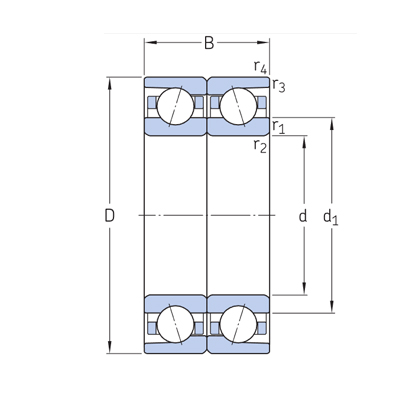

Dimensions - 71800 ACD/P4DBB
size
d :10 mm Aperture
D :19 mm Outer diameter
B :10 mm width
d 1 :13.1 mm Inner ring flange diameter (large end face)
r 1.2 :min.0.3 mm Chamfer size
r 3.4 :min.0.15 mm Chamfer size
Shoulder Dimensions
shoulder size
d a:min.12 mm Shaft shoulder diameter
Db :max.18.2 mm Bearing seat shoulder diameter
ra :max.0.3 mm corner radius
rb :max.0.15 mm corner radius
dn :13.4 mm Injector position
