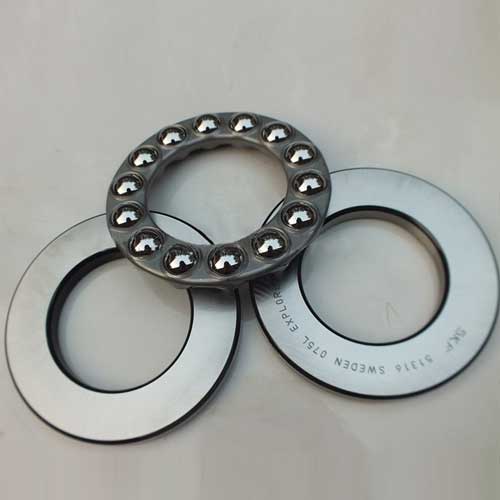

High performance thrust ball bearing 51316

2017-12-19
service content:


Bearing Thrust ball thrust ball ball beari



High performance thrust ball bearing 51316

Quick Details

Structure: Thrust

Type: Ball

Brand Name: NTN, SEMRI

Bore Size: 1 - 80 mm

Outside Diameter: 1 - 140 mm

Model Number: Bearing 51316

Precision Rating: P0-p2-p4-p5-p6

Seals Type: OPEN

Number of Row: Single Row

Place of Origin: Japan

Inner diameter: 80mm

Outer diameter: 140mm

Thickness: 44mm

Service: OEM

Sample:: Available

OEM: Accept

Certificate:: ISO9001:2000



Thrust ball bearing 51316

1) Brand Name:NTN NSK KOYO TIMKEN SNR NACHI ZKL ZWZ HRB LYC IKO HFL etc etc.

2) Precision Rating: P0, P6, P5, P4, P2

3) Seals type: Z, ZZ, RS, 2RS, RZ, ZNR, etc.

4) Material: Gcr15-China, (AISI) 52100-USA, (DIN) 100CR6-Germany

5) Vibration and noisy level: Z1, Z2, Z3, V1, V2, V3

6) Radial Clearance: C2, C0, C3, C4,C5

7) Lubrication: oil or grease

8) Retainer: Brass/Nylon/Steel



Abstract of thrust ball bearing:

This kind of bearing can be classified into two kinds. The single-direction thrust ball bearing consists of a shaft washer, a housing washer and a ball-cage assembly. The bearing is separable facilitating the separate mounting of the shaft washer, housing washer and ball-cage assembly. It can withstand axial load in one direction and conduct axial locating in one direction but they must not be subject to any radial load.

The double-direction thrust ball bearing consists of a shaft washer, two housing washers and two ball-cage assemblies. It is also separable and all the parts can be mounted independently. It uses the same shaft washer, housing washer and ball-cage assembly as the single-direction thrust ball bearing.

Description of thrust ball bearing

Thrust ball bearings can withstand thrust when using high speed load design, consists of a ball rolling roll gap in the gasket.Thrust ball bearing seat, shaft ring and ball retainer module two parts. High quality steel - used can extend bearing life highest 80% super clean steel high grease technology quiet and smooth when high-speed rotation using the ring in the option, the permissible installation error. Apply to bear a part of the axial load and low speed, such as crane hook, vertical pumps, vertical centrifuge, jack, low speed reducer, etc. The shaft of the bearing ring, seat ring and rolling body is separate, can be installed separately well.



Features of thrust ball bearing

1. Convenient installation - for one-way or two-way, spherical self-aligning cushions and the type of spherical seat can be selected.

2. High-quality ultra clean steel bearing with a 80% longer lifetime

3. Excellent grease technology - NSK lubrication technology extends the life expectancy of grease and improves bearing's performance

4. High-grade steel ball - quiet and smooth rotation at high speed

thrust ball bearing 51316



TIANJIN SEMRI BEARING TECHNOLOGY CO.,LTD

If you need any types bearing,please contact us.We will do our best service for you.

http://www.semribearing.com/
