High presicion angular contact ball bearing 7008

2018-03-28
service content:


b Bearing h roller



High presicion angular contact ball bearing 7008

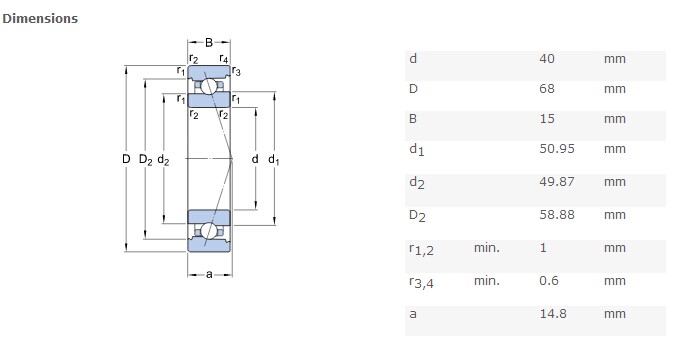

Quick Details:

Structure:angular contact

Type:ball

Inner diameter:40mm

Outer diameter:68mm

Width:15mm

Brand: SKF FAG INA NSK KOYO NTN SEMRI…

Number of Row:single

Place of origin:Sweden

Seals type:open,sealed















The raceways of angular contact ball bearing in the inner and outer rings can have relative displacement on the horizontal axis. Therefore, this design can make it withstand combined loads, namely, supporting radial and axial loads simultaneously. The axial load capacity of angular contact ball bearing improves with the increasing contact angle. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis. The retainer is made of brass, synthetic resin of others subject to individual bearing's features and application conditions.
