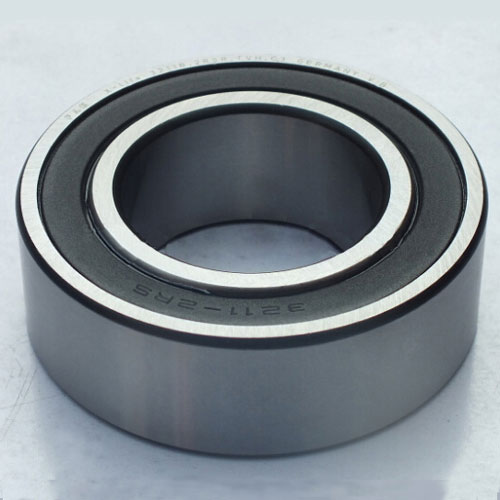

High quality angular contact ball bearing 3211
Quick Details
Structure: Angular Contact
Type: Ball
Brand Name: SEMRI or other brand
Bore Size: 1 - 50 mm
Outside Diameter: 1 - 100 mm
Model Number: bearing 3211
Precision Rating: P0-p2-p4-p5-p6
Seals Type: OPEN
Number of Row: Double Row
Place of Origin: Shandong, China (Mainland)
Certificate:: ISO9001:2000
Service: OEM
sample: available
Quality:: high quality
Model
d
(mm)
D
(mm)
B
(mm)
Dynamic
(kN)
Static
(kN)
Limiting
Speed
Reference
Speed
Mass
(Kg)
3211 55 100 33.3 58.5 49 5600 7500 0.969
Double row angular contact ball bearings correspond in design to two single row angular contact ball bearings arranged back-to-back, but take up less axial space. They can accommodate radial loads as well as axial loads acting in both directions. They provide stiff bearing arrangements and are able to accommodate tilting moments.
We provide double row angular contact ball bearings in several designs depending on size and application:
A. basic design bearings
B. sealed bearings
C. bearings with a two-piece inner ring
D. large bearings for heavy engineering applications with two-piece inner or outer ring
Bearings in the 52 and 53 series, in accordance with ABMA standards, are no longer available, and have been replaced with 32 and 33 series bearings in accordance with ISO.
TIANJIN SEMRI BEARING TECHNOLOGY CO.,LTD
If you need any types bearing,please contact us.We will do our best service for you.
http://www.semribearing.com/
