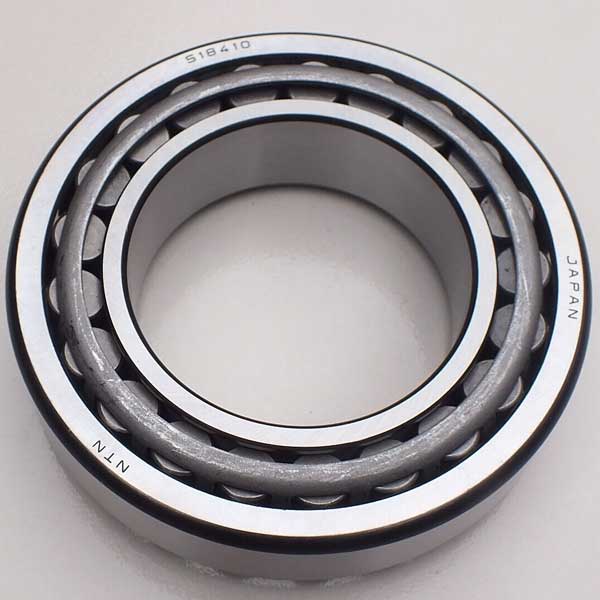

Inch taper roller bearing 518445/518410

2018-03-30
service content:






Quick Details:

Structure:taper

Type:roller

Inner diameter:88.9mm

Outer diameter:152mm

Width:39.688mm

Brand:  FAG INA NSK KOYO NTN SEMRI…

Number of Row:single row

Place of origin:Sweden

Seals type:open,sealed



Description:

Inch Tapered roller bearings is refers to the dimensions are in inches as a unit of measurement of the tapered roller bearings, the source from the Anglo American countries.

Tapered roller bearings inside, the outer ring has a tapered raceways, raceway fitted between the tapered roller. If tapered surface extending eventually converge to a point on the bearing axis. Tapered roller bearings are mainly used to bear radial load mainly radial, axial joint load. Axial bearing capacity by the contact angle, the greater the reach, the greater the axial load capacity Tapered roller bearings for the separation of bearings, with roller and cage inner ring inner components can be installed separately from the outer ring This kind of bearing shell limit the axis or axial displacement side allowed tilt axis relative to shell hole. In the radial load, it will produce additional axial force, therefore, generally in two support bearings, the bearing outer ring and inner ring with the face should be relatively installation.
The main purpose of such bearings: automotive front, rear, transmission, differential, pinion shaft, spindle, construction machinery, large-scale agricultural machinery, railway vehicles, gear reduction, the rolling mill roll neck small deceleration devices.





TIANJIN SEMRI BEARING TECHNOLOGY CO.,LTD

If you need any types bearing,please contact us.We will do our best service for you.

http://www.semribearing.com/
