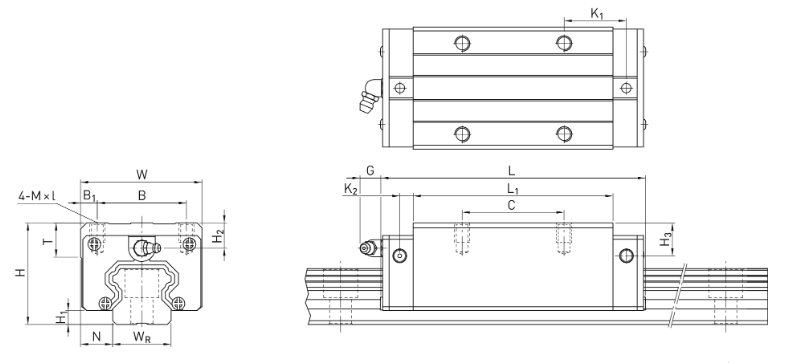

| Dimensions | |||
| H | Total height | 80 | mm |
| H1 | 13 | mm | |
| N | 23,5 | mm | |
| W | Block width | 100 | mm |
| B | 75 | mm | |
| B1 | 12,5 | mm | |
| C | 75 | mm | |
| L1 | 117,7 | mm | |
| L | Block length | 166,7 | mm |
| K1 | 27,35 | mm | |
| K2 | 11 | mm | |
| G | 12,9 | mm | |
| M | M12 | ||
| l | 18 | mm | |
| T | 17,5 | mm | |
| H2 | 22 | mm | |
| H3 | 29 | mm | |
| Mass | 4,17 | kg | |
| Load ratings and torques | |||
| Cdyn | Dynamic load rating | 153.200 | N |
| C0 | Static load rating | 211.230 | N |
| M0X | Static moment | 3.690 | Nm |
| M0Y | Static moment | 3.684 | Nm |
| M0Z | Static moment | 3.684 | Nm |
