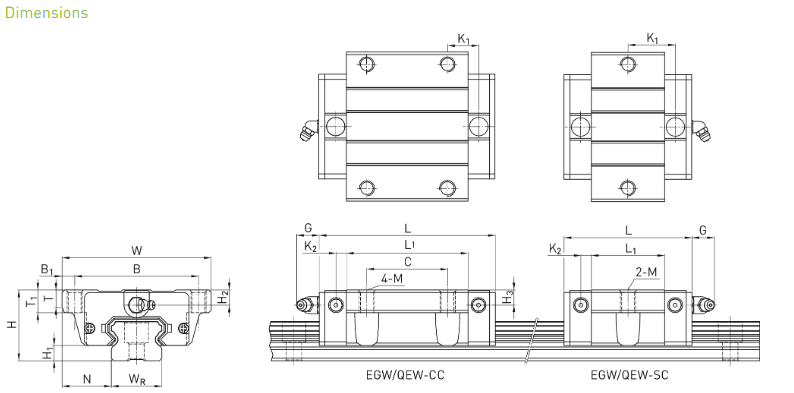

| Dimensions | |||
| H | Total height | 48 | mm |
| H1 | 11 | mm | |
| N | 33 | mm | |
| W | Block width | 100 | mm |
| B | 82 | mm | |
| B1 | 9 | mm | |
| C | 50 | mm | |
| L1 | 83 | mm | |
| L | Block length | 108 | mm |
| K1 | 21,3 | mm | |
| K2 | 6,25 | mm | |
| G | 12 | mm | |
| M | M10 | ||
| T | 10 | mm | |
| T1 | 13 | mm | |
| H2 | 8,5 | mm | |
| H3 | 8,5 | mm | |
| Mass | 1,19 | kg | |
| Load ratings and torques | |||
| Cdyn | Dynamic load rating | 51.180 | N |
| C0 | Static load rating | 59.280 | N |
| M0X | Static moment | 1.000 | Nm |
| M0Y | Static moment | 750 | Nm |
| M0Z | Static moment | 750 | Nm |
