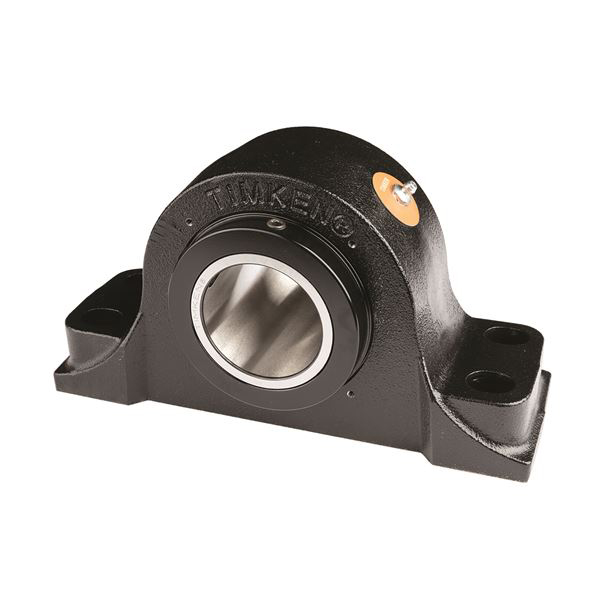

Timken Part Number E-P4B-TRB-2 15/16, Type E Pillow Block: 4-Bolt Base Bearing
Specifications
Shaft Size :2.9375 in
Shaft Size Type:Imperial
UPC Code:053893607610
Lubrication:Grease - Premium Industrial
Housing Coating:E-Coat

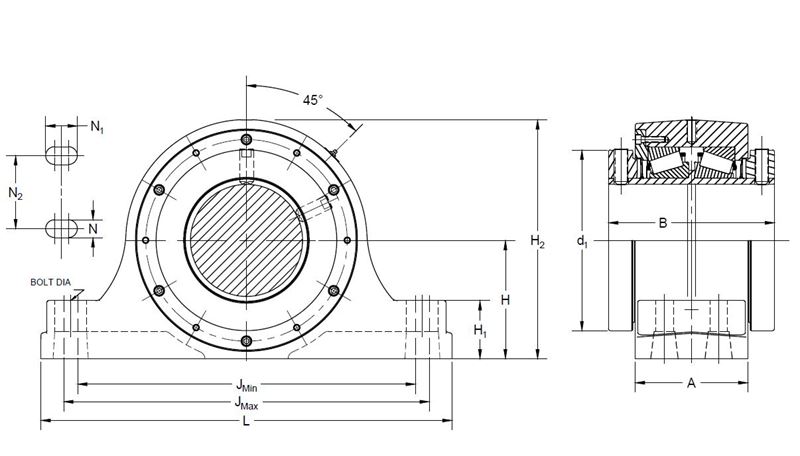

Dimensions
Dimension B :4 1/2 in
Dimension L :12 in
Dimension A :4 in
Dimension J Min.:9-3/16 in
Dimension J Max.:9-13/16 in
Bolt Diameter :5/8 in
Dimension N :11/16 in
Dimension N1 :1 in
Dimension N2 :2-1/8 in
Dimension H1 :1-7/8 in
Dimension H2 :6-1/4 in
Dimension d1 :4-23/32 in
Dimension H :3-1/8 in
Radial and Thrust Factors; Speed and Slip-Fit Load Limits
e :0.46
X (if Fa/Fr ≤ e):0.87
Y (if Fa/Fr ≤ e):1.87
X (if Fa/Fr > e) :0.7
Y (if Fa/Fr > e) :2.26
K Factor :1.30
C90 Dynamic Load Rating1 :12300 lbf
C0 Static Load Rating :61200 lbf
Fa-max Maximum Permissible Thrust Load2 :5181 lbf
Fr-max Maximum Allowable Slip Fit Radial Load3 :10000 lbf
Max. Speed4 :2060 rpm

Note: All units have a 1/8" pipe thread grease fitting

The Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occurs. The values shownare valid only when two collars and set screws are used.

When heavy thrust forces are applied, the friction between the pillow block base may not be sufficient to prevent movement. Mechanical stops or shear bars withstrength sufficient to support the load should be added. Never weld the pillow block or bearing to secure it to the shaft or base.
1 C90 is the Dynamic Load Rating based on a rated Life of 90 million revolutions (3000 hrs at 500 RPM).
2 Fa-max is based on the limits of the holding force of two properly tightened collars and set screws. Fifty percent of the values should be used when a single collar is installed.
3 If the application loads approach or exceed Fr-max, the shaft fit should be adjusted to a line-to-line (g6 or h6) or light press fit (m6).
4 Timken Double Lip Seal
